Thông tin chi tiết sản phẩm:
|
| Phương pháp kiểm soát: | PLC/Tín hiệu chuyển mạch/Mức | Bảo hành: | một năm |
|---|---|---|---|
| Bước sóng: | 365/385/395/405nm (tùy chọn) | Ứng dụng: | Bảo dưỡng chính xác |
| Làm nổi bật: | UV Glue Curing UVLED Spot Lamp,Industrial UVLED Spot Lamp,UVLED Spot Lamp |
||
The UV LED spot curing system delivers stable, high-intensity UV energy through multiple independently controlled channels, enabling fast and repeatable curing of UV adhesives, coatings, and encapsulation materials. The system can be equipped with up to four independent curing heads, offering exceptional flexibility for automated production lines, laboratory testing, and precision assembly processes.
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Light Source | UV LED | Wavelength | 365nm / 385nm / 395nm / 405nm |
| Control Channels | 1-4 Independent Channels | Output Intensity | Adjustable |
| Operation Mode | Continuous / Timer | Cooling Method | Air Cooling |
| Control Interface | LCD Display | Input Voltage | AC 100-240V, 50/60Hz |
| LED Lifetime | >20,000 Hours | External Control | PLC / I/O Trigger |
Each UV curing head can be programmed individually for:
This allows multiple curing processes to run simultaneously.
Provides concentrated UV energy exactly where needed. Suitable for:

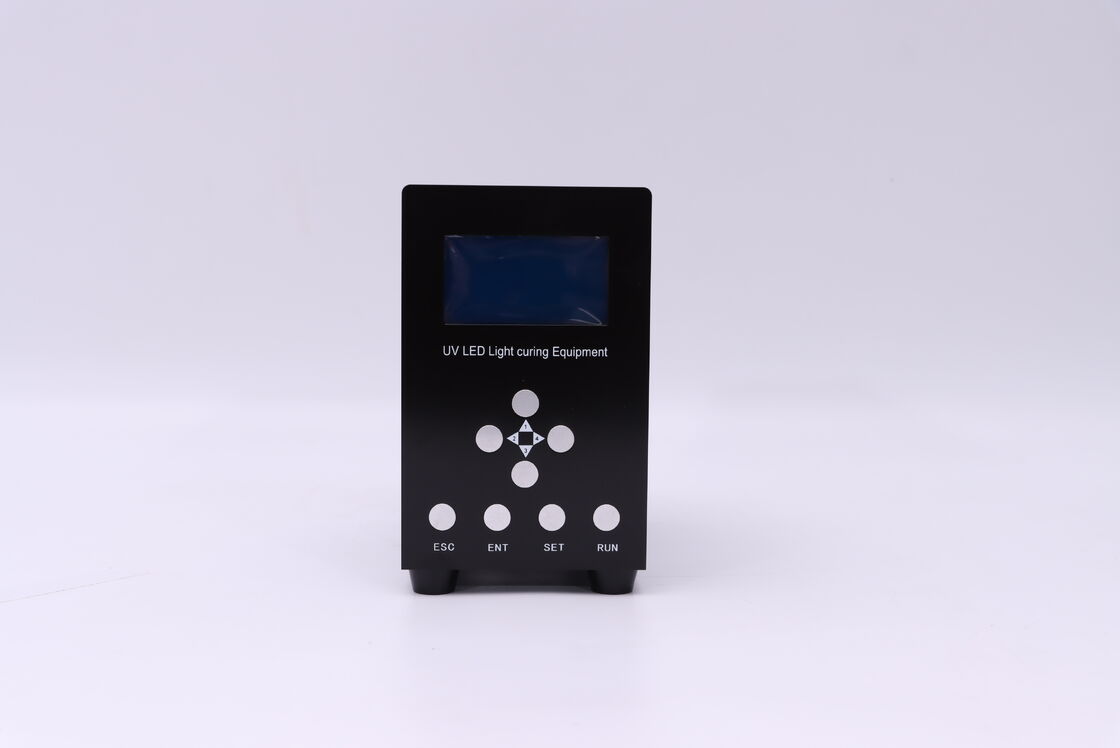

The front-panel LCD display allows operators to:
Simple operation reduces setup time and improves production consistency.
Compared with traditional mercury lamps, UV LED technology significantly reduces thermal stress on sensitive components. Ideal for:
UV LED Spot curing system is a precision curing device that delivers concentrated UV light through a small spot, ideal for curing UV adhesives, coatings, and encapsulants in electronics, medical devices, and optical assemblies.
Common wavelengths include 365nm, 385nm, 395nm, and 405nm. The best wavelength depends on the UV adhesive, coating, or ink being used.
UV LED Spot curing systems are widely used in electronics manufacturing, medical device assembly, semiconductor packaging, optical bonding, and laboratory research.
Yes. The UV intensity and exposure time can be independently adjusted to meet different curing process requirements.
