Thông tin chi tiết sản phẩm:
|
| Từ khóa: | Hệ thống bảo dưỡng bằng đèn LED UV | Quyền lực: | 1200W |
|---|---|---|---|
| Điện áp đầu vào: | AC85-265V | Chiều dài sóng: | 395nm |
| Cách làm mát: | Làm mát nước | Cường độ UV: | 18W/CM2 |
| Bảo hành: | 2 năm | Bưu kiện: | Vỏ gỗ |
| Làm nổi bật: | 1200W LED UV curing lamp,UV curing system for offset press,OEM sheet-fed UV light |
||

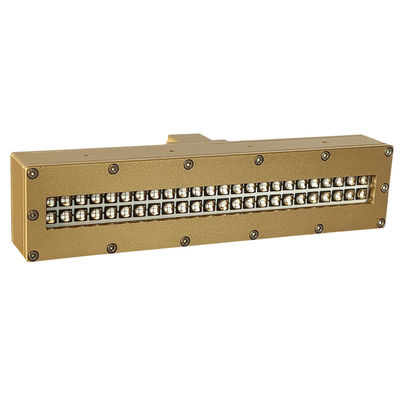

LED UV Curing System Uv Lamp Dryer For Sheet-Fed Offset Press
LED UV Curing System Description
The LED UV curing method is recognized today as an advanced approach. By emitting ultraviolet light, it provides superior curing speed and reliable performance for all UV series materials.
LED UV Curing System Datasheet
|
Model
|
CG-CT3-40027-1200A | lamp color |
Rose golden |
|
Power |
1200W |
Chip brand |
LG/Seoul |
|
Input voltage |
AC85-265V |
Wave length |
365/385/395/405nm |
|
Application |
UV ink/vanish/coating /adhesive curing |
Life span |
20000H |
|
Cooling way |
Water cooling |
Emitting window size |
customized |
|
UV intensity |
18W/CM2 |
Dimmable |
0%-100% |
|
Best emitting distance |
30-50mm | Package | wooden case |
LED UV Curing System Advantages
LED UV Curing System FAQ:
Q1: What’s the wavelength of the leduv lamp ?
A1: Usually 395-405nm The 395nm/385nm is used for printing machine ,365 nm is for adhesive.
Q2: What’s your led brand ?
A2:LG/Seoul
Q3: What’s the material of lamp and lens ?
A3: Aluminium /quartz
Q4: What’s the cooling way for the leduv curing system ?
A4: Water or air cooling
Q5: The uv intensity can be change?
A5: Yes, the uv intensity is changeable from 0%-100%
Q6: What’s the max energy of uvled lamp ?
A6: It’s depend on emitting time , the longer the higher energy output total amount.
Q7: What’s the lifespan of the uvled curing lamp ?
A7: Our warranty is 2yeas for all system (Chiller /power supply ) mostly can reach 5yeas
