Thông tin chi tiết sản phẩm:
|
| Từ khóa: | Hệ thống vận chuyển khắc phục tia cực tím | Quyền lực: | 1500W |
|---|---|---|---|
| Điện áp đầu vào: | AC85-265V | Chiều dài sóng: | 395nm/365nm |
| Cách làm mát: | Làm mát nước | Cường độ UV: | 18W/CM2 |
| Bảo hành: | 2 năm | Bưu kiện: | Vỏ gỗ |
| Làm nổi bật: | rotatable bottle UV curing machine,screen printing UV curing conveyor,UV curing machine for bottles |
||

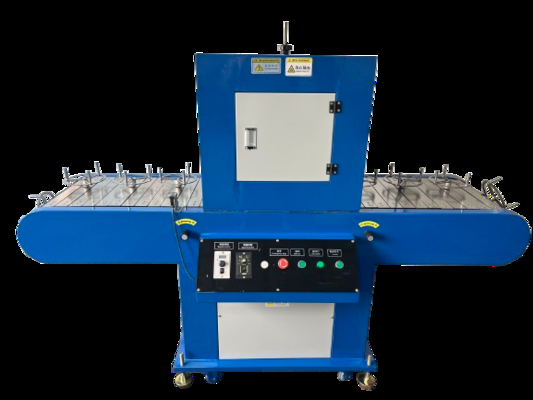

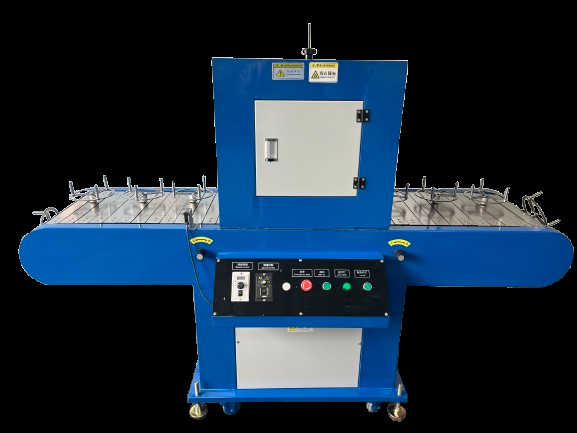

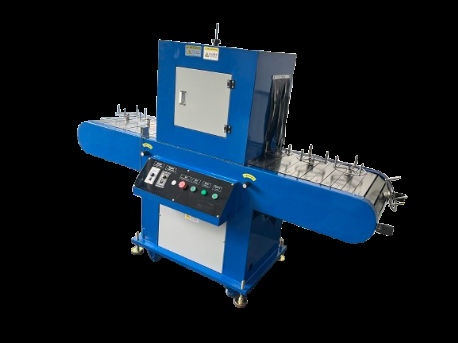

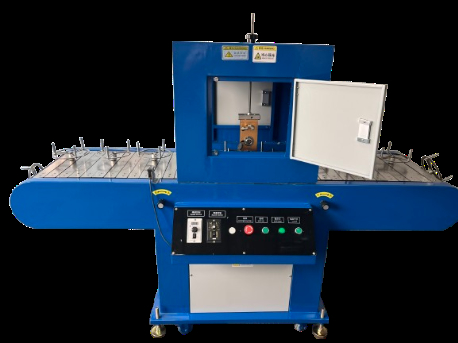

UV Curing Conveyor Systems Uv Screen Printing Ink UV Curing Machine
UV Curing Conveyor Systems Description
" LED" UV curing lamp is a new technology and way emitting ultraviolet ray radiation to dry UV series materials resin/ink/varnish/adhesive/coating etc with fast speed and good peformance in nowadays .
UV Curing Conveyor Systems Datasheet
|
Model
|
CG-GHL-W400-360*27-A/C | lamp color |
Rose golden |
|
Power
|
1500W |
Chip brand |
LG/Seoul |
|
Input voltage
|
AC85-265V |
Wave length |
365/385/395/405nm |
|
Application
|
UV ink/vanish/coating /adhesive curing |
Life span |
20000H |
|
Cooling way
|
Water cooling |
Emitting window size |
customized |
|
UV intensity
|
18W/CM2 |
Dimmable |
0%-100% |
|
Best emitting distance
|
30-50mm | Package | wooden case |
UV Curing Conveyor Systems Advantages
UV Curing Conveyor Systems FAQ:
Q1: What’s the wavelength of the leduv lamp ?
A1: Usually 395-405nm The 395nm/385nm is used for printing machine ,365 nm is for adhesive.
Q2: What’s your led brand ?
A2:LG/Seoul
Q3: What’s the material of lamp and lens ?
A3: Aluminium /quartz
Q4: What’s the cooling way for the leduv curing system ?
A4: Water or air cooling
Q5: The uv intensity can be change?
A5: Yes, the uv intensity is changeable from 0%-100%
Q6: What’s the max energy of uvled lamp ?
A6: It’s depend on emitting time , the longer the higher energy output total amount.
Q7: What’s the lifespan of the uvled curing lamp ?
A7: Our warranty is 2yeas for all system (Chiller /power supply ) mostly can reach 5yeas
